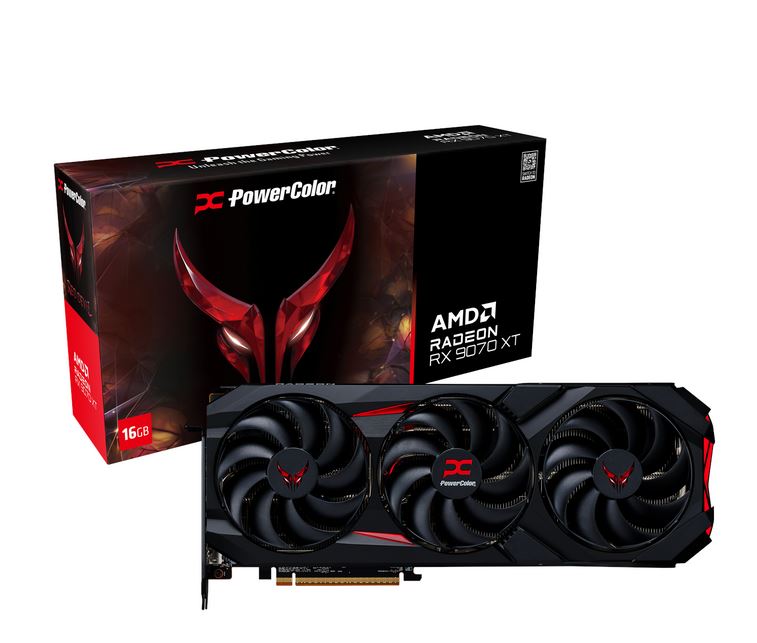

Graphics Engine AMD Radeon™ RX 9070 XT

Model Name RX9070XT 16G-E/OC

Series Red Devil

Stream Processor 4096 Units

Video Memory 16GB GDDR6

Memory Speed 20.0 Gbps

Memory Interface 256-bit

Engine Clock(OC) up to 2520MHz(Game)¹ up to 3060MHz(Boost)²

Engine Clock(STD/Silent) up to 2460MHz(Game)¹ up to 3010MHz(Boost)²

Bus Standard PCIE 5.0 x16

Standard Display Connectors 1 x HDMI 2.1b，3 x DisplayPort 2.1a (only 2x simultaneous DP2.1 connections can be supported)

DirectX® Support 12

OpenGL 4.6

AMD Stream Technology Support

AMD Eyefinity Technology Support

AMD Smart Access Memory Support

DisplayPort 7680×4320

HDMI 7680×4320

Board Dimensions :

340m*132mm*69mm
352mm*149mm*69mm(with bracket)

Slot 3

Minimum System Power requirement (W)

Extension Power Connector

¹Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
²Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
³Recommended power supply for AMD Radeon RX 9070 XT graphics card is minimum 900W or greater power supply with 12V output > 75A. Minimum recommended system power supply wattage is based on a PC configured with an AMD Ryzen 9 7950X processor plus typical power requirements of other system components. Your system requirements may differ.
