Beskrivelse

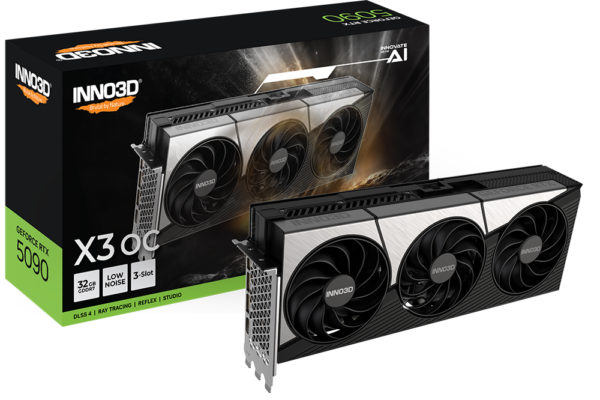

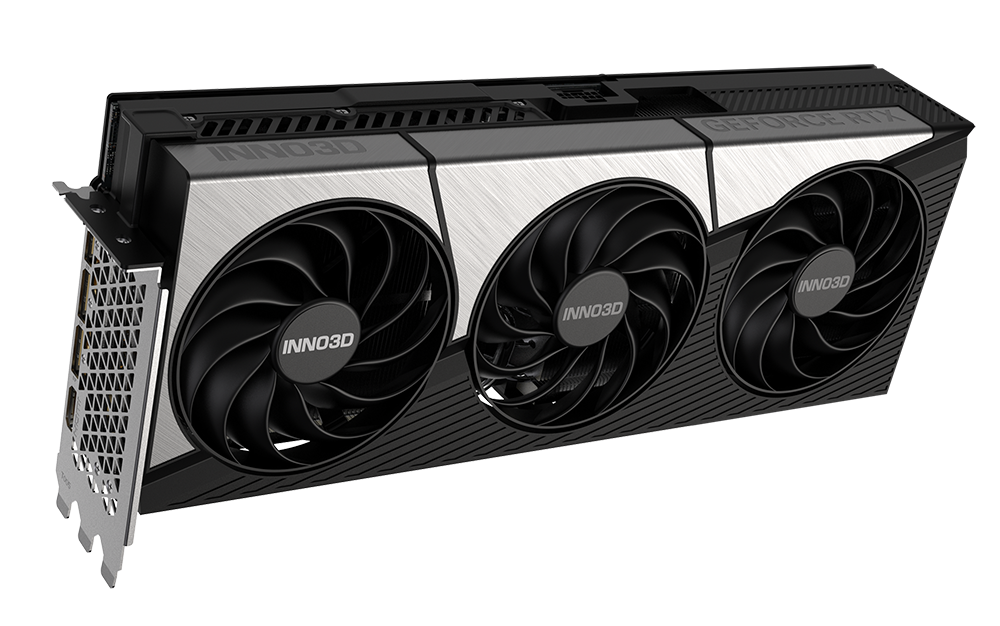

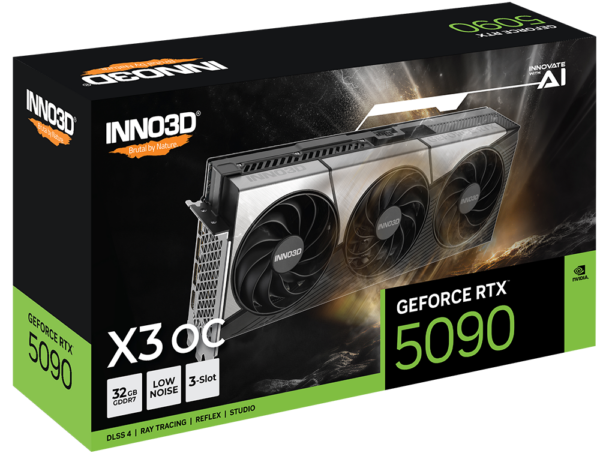

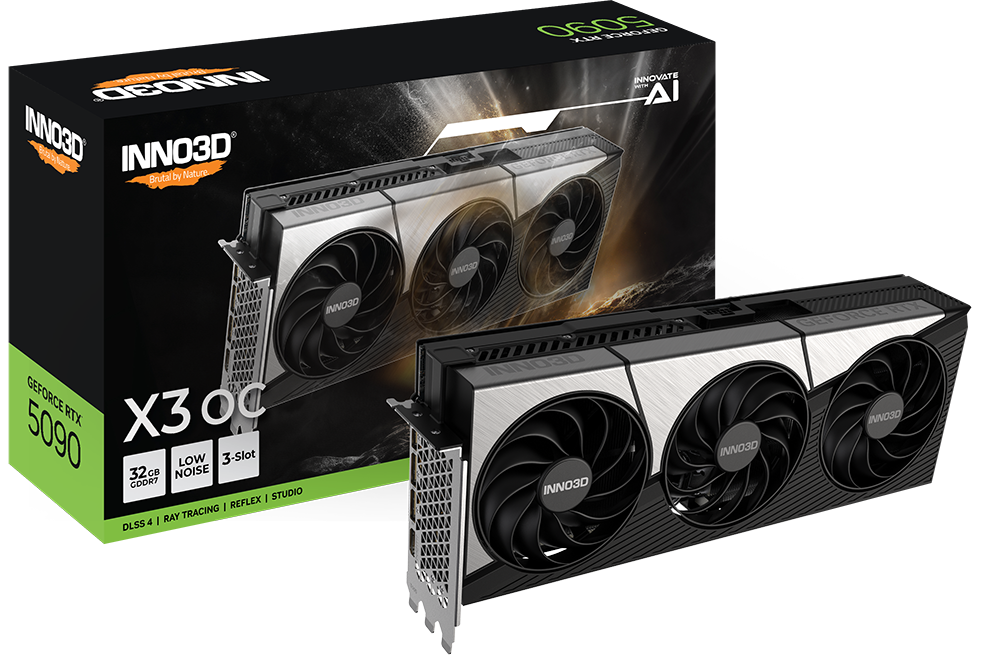

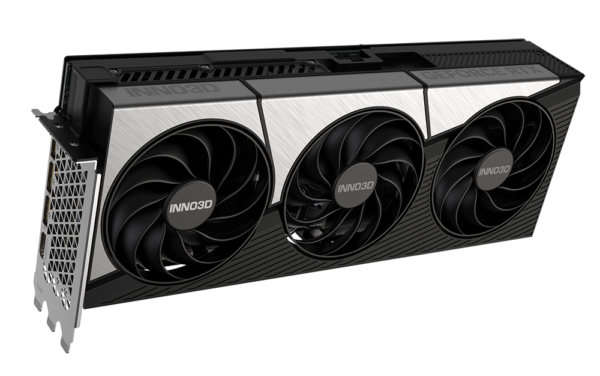

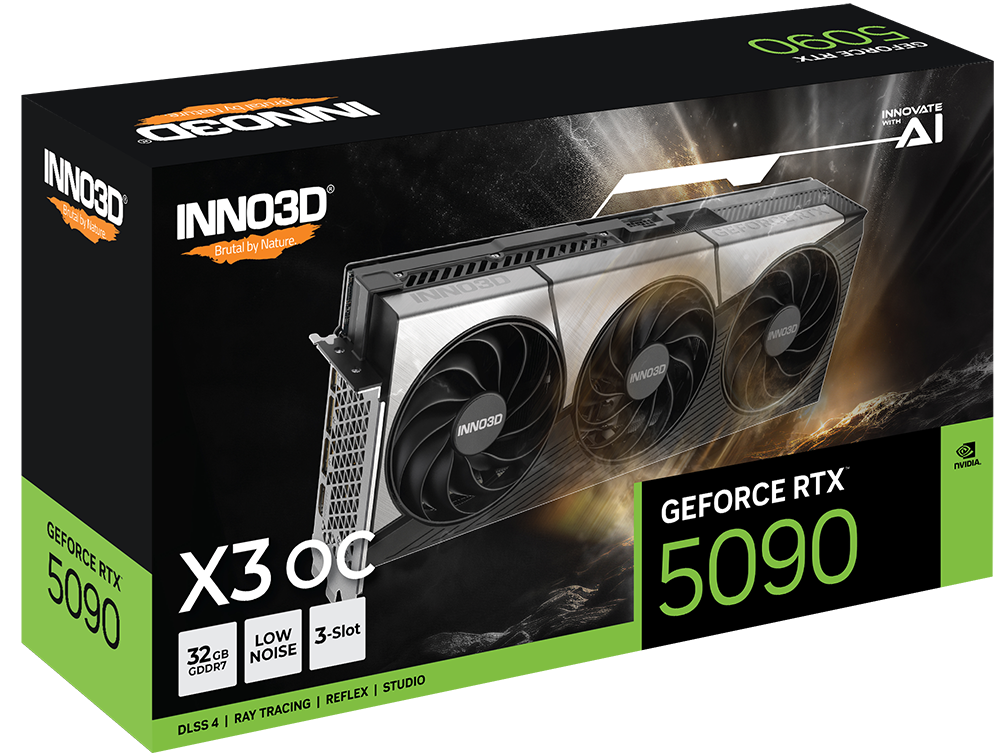

RTX 5090 OC GPU Engine Specs
CUDA Cores : 21760
Boost Clock (MHz) 2452MHz
Base Clock (MHz) 2017MHz
Thermal and Power Spec Minimum System Power Requirement (W) : 1000W
Supplementary Power Connectors 4x PCIe 8-pin cables (adapter in box) OR 1x 600 W PCIe Gen 5 cable
Memory Specs
Memory Clock : 28Gbps
Standard Memory Config 32GB
Memory Interface GDDR7
Memory Interface Width 512-bit
Memory Bandwidth (GB/sec) 1792 GB/sec
Feature Support
Real-Time Ray Tracing Yes
Real-Time Ray Tracing Yes
Ray Tracing Cores 4th Generation, 318 TFLOPS
Tensor Cores 5th Generation, 3352 AI TOPS
NVIDIA Architecture Blackwell
Microsoft DirectX 12 Ultimate
NVIDIA DLSS 4
NVIDIA Ansel Yes
NVIDIA FreeStyle Yes
Bus Support PCI Express Gen 5
NVIDIA ShadowPlay Yes
OS Certification Windows 11 / 10, Linux, FreeBSDx86
NVIDIA Highlights Yes
NVIDIA G-SYNC™-Ready Yes
Game Ready Drivers Yes
NVIDIA Studio Drivers Yes
NVIDIA GPU Boost™ Yes
Vulkan API 1.4
OpenGL 4.6
NVIDIA Encoder 3x Ninth Generation
NVIDIA Decoder 2x Sixth Generation
Accessories
Graphics Card Stand : Yes (embedded with cooler)
Graphics Card Dimensions
Length 333
Height 137
Width 60
Display Support
Multi Monitor up to 4
Maxmium Digital Resolution 4K at 480Hz or 8K at 165Hz with DSC
HDCP 2.3
Standard Display Connectors 3x DisplayPort 2.1b, 1x HDMI 2.1b
